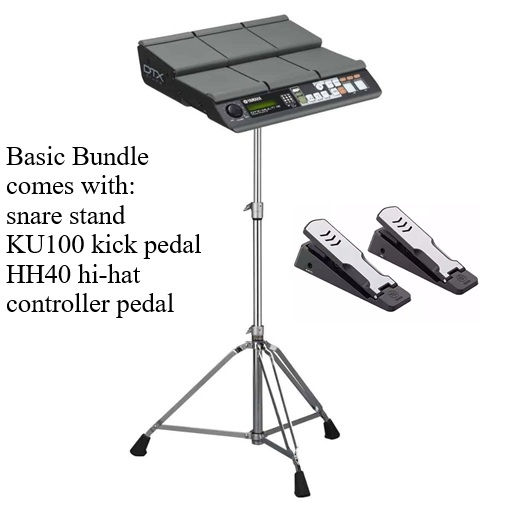

YAMAHA DTX-MULTI 12 ELECTRONIC DRUM PAD

High-Quality Drum sounds and other instruments' sounds are coming by hitting the pads. In addition, you can record MIDI data when you connected it to a computer.

Specs:

Size/Weight

Dimensions

Width: 345mm

Height: 96mm

Depth: 319mm

Weight

Weight: 3.3kg

Pad section

Built-in pads: 12

External inputs: 5 (three-zone x 1; monaural x 4)

Tone generator

Maximum Polyphony: 64 notes

Voices: Drum and percussion: 1,061Keyboard: 216

Effects: Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer

Drum kits: Preset: 50User-defined: 200

Wave memory: 100 MB (16-bit linear conversion)

Sequencer

Note Resolution: Quarter note / 480

Patterns: Preset patterns: 128 phrases (including 3 demo patterns)User-defined patterns: 50 phrases

Sequence formats: ProprietarySMF Format 0 (for loading only)

Sequence capacity: 152,000 notes

Recording method: Real-time overdubbing

Waves

Readable quantity: 500

Bit depth: 16 bit

Wave memory: 64 MB

Maximum size: Mono sample: 2 MBStereo sample: 4 MB

Sample formats: Proprietary, WAV, and AIFF

Other

Display: Backlit LCD with 2 rows of 16 characters

Connectors: PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch)PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger)HI-HAT CONTROL jack (standard stereo-phone plug)FOOT SW jack (standard stereo-phone plug)OUTPUT L/MONO and R jacks (standard phone plugs)PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN.

Power Consumption: 9W (DTXM12 and PA-5D adaptor)

Package Contents: Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5)

Trigger section

Pad functions: Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages

Click-track

Tempo: 30 to 300 BPM. Tap tempo functionality

Beats: 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16

Note timing: Accent notes, quarter notes, eight notes, sixteenth notes, triplets

Product Comes Bundled With

• 1 x Yamaha DTX-Multi 12

• 1 x Yamaha PA-150B AC Power Adaptor (3 Pin)
