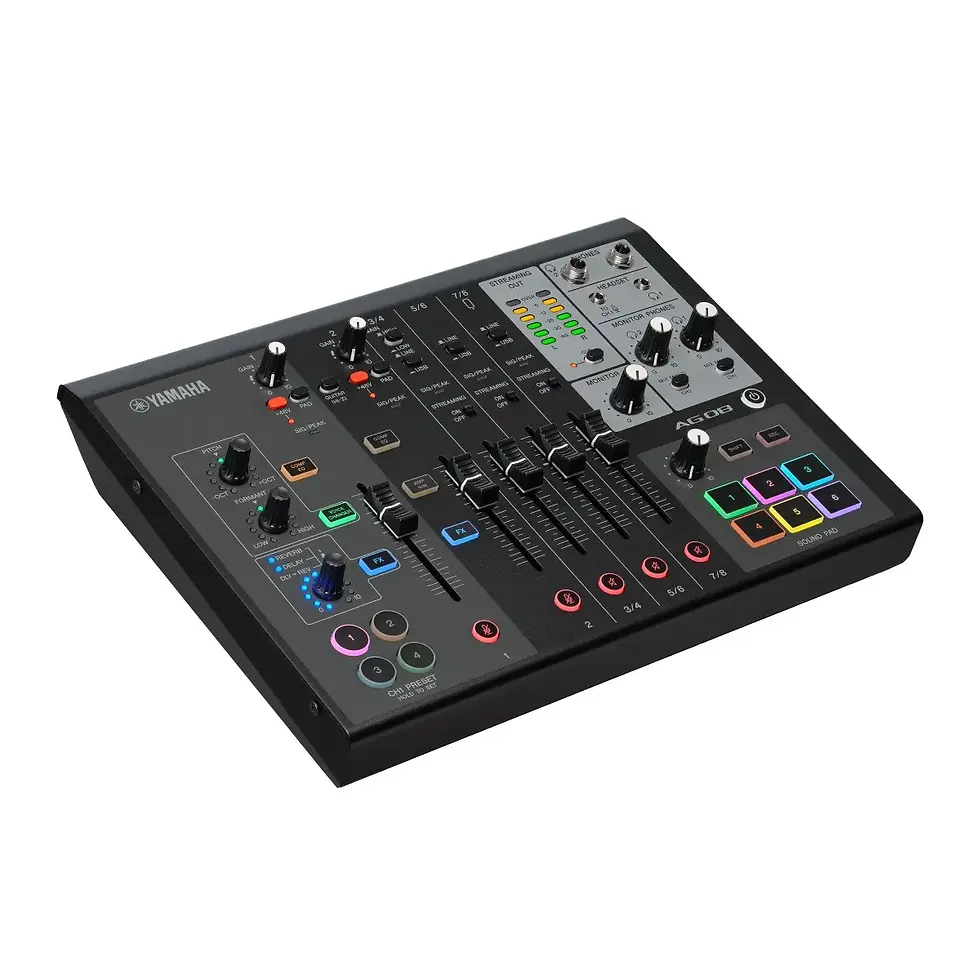

YAMAHA AG08 8-CHANNEL LIVE STREAMING MIXER

An 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler.

• Two mic/line inputs and two headphone outputs can be used simultaneously

• +48 V phantom power on CH1 and 2 for condenser mics or Dl boxes

• Four FX preset buttons for CH1, Hi-Z input for guitars on CH2

• Three stereo inputs with assignable faders, switchable input source for LINE/USB

• 4-pole mini input/output (TRRS) on CH7/8

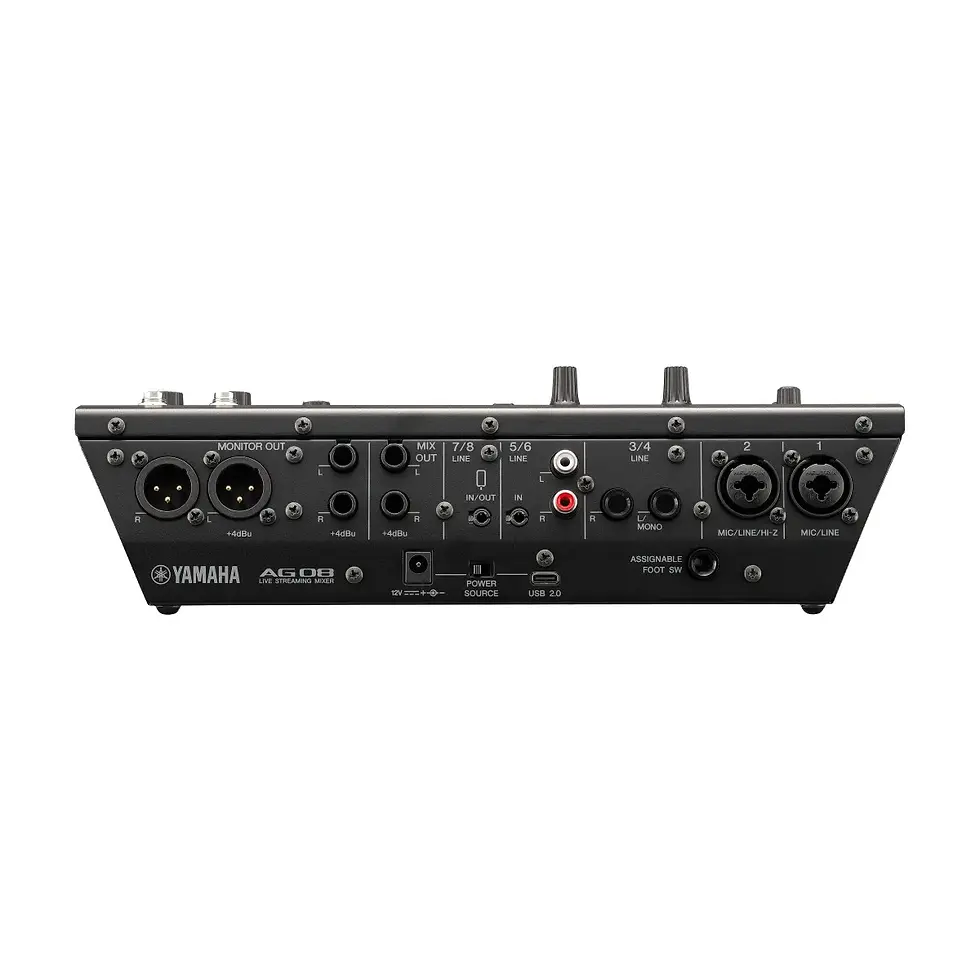

• MONITOR outputs (XLR + TRS) and MIX outputs (TRS)

• Six sound pads trigger audio samples in real time to add color to live streams

• Internal circuitry delivers highest sound-quality in the AG series

• 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)

• Flexible inputs and outputs ideal for live streaming

• DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)

• AG08 Controller (Windows / Mac / iPadOS) for precise parameter control and detailed audio management

• 60 mm faders and Mute buttons for each input

• Foot switch functionality for more versatile system control

• Windows / Mac support via USB-C connection

• iPadOS connectivity via Apple Camera Adapter (requires external USB power supply)

• Android supported by 4-pole mini input/output (TRRS)

• USB-C power input (5 V DC, 1.5 A)

• Cubase Al, WaveLab Cast, Cubasis LE are available

Product comes packaged with

• AC Adapter (PA-150B)

• USB 2.0 Cable (1.5m)

• Quick Guide

• Safety Guide

• Wavelab Cast Download Information

• Cubase AI Download Information
