YAMAHA BLACK MGX12V / MGX16V DIGITAL MIXING CONSOLE WITH VIDEO INTERFACE

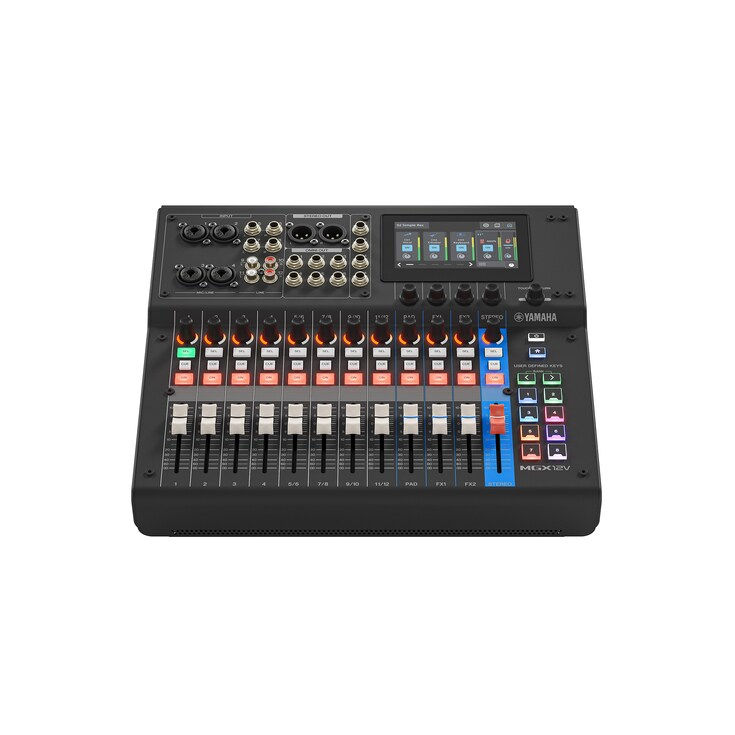

MGX12V

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 11 + 1 fader configuration (non-motorized fader)

• A 4.3-inch touchscreen with five control knobs

• Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return

• Busses: 1 STEREO + 8 MIX

• Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)

• Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones

• USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)

• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)

• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)

• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)

• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough

• Built-in DSP processor for professional sound and latency-free monitoring

• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall

• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

MGX16V

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX16V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 15 + 1 fader configuration (non-motorized fader)

• A 4.3-inch touchscreen with five control knobs

• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return

• Busses: 1 STEREO + 8 MIX

• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)

• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones

• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)

• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)

• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)

• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)

• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough

• Built-in DSP processor for professional sound and latency-free monitoring

• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall

• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
