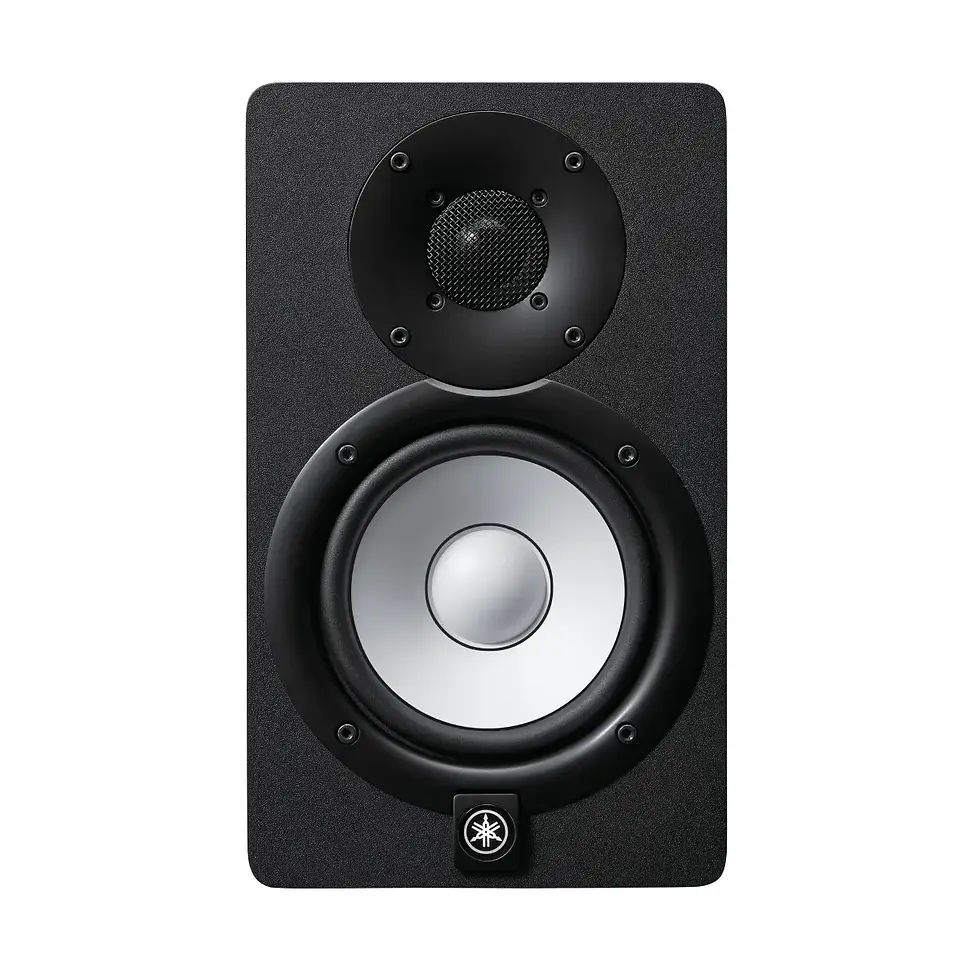

YAMAHA HS5MP HS5 MP (MATCHED PAIR) BLACK 5" POWERED STUDIO MONITOR

In the 15 years since we introduced them, our HS Series powered studio monitors have become a favorite in professional, project and home studio environments.

Our new special edition HS5 MP Set includes two HS5 monitors, both manufactured using a unique process and both utilising specially selected parts. The result is a pair of monitors, each as closely matched to one another as is possible.

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter

• 54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response

• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification

• ROOM CONTROL and HIGH TRIM response controls

• XLR and TRS phone jack inputs accept balanced or unbalanced signals

General specifications

Speaker type: 2-way bi-amp powered studio monitor

Frequency response (-10dB): 54Hz - 30kHz

Frequency response (-3dB): 74Hz - 24kHz

Components

LF: 5" cone

HF: 1" dome

Crossover: 2kHz

Output power: 70W (LF:45W, HF:25W)

Input sensitivity: -10 dBu/10k ohms

I/O connectors: XLR3-31 type (balanced), PHONE (balanced)

Indicators: Power ON (White LED)

Power consumption: 45W

Shape: Bass-reflex type

Cabinet material: MDF

Dimensions

W: 170mm (6-11/16")

H: 285mm (11-1/4")

D: 222mm (8-3/4")

Net weight: 10.6g (23.4 lbs.)

Accessories: Owner's Manual, Power cord

Packaging: Matched Pair

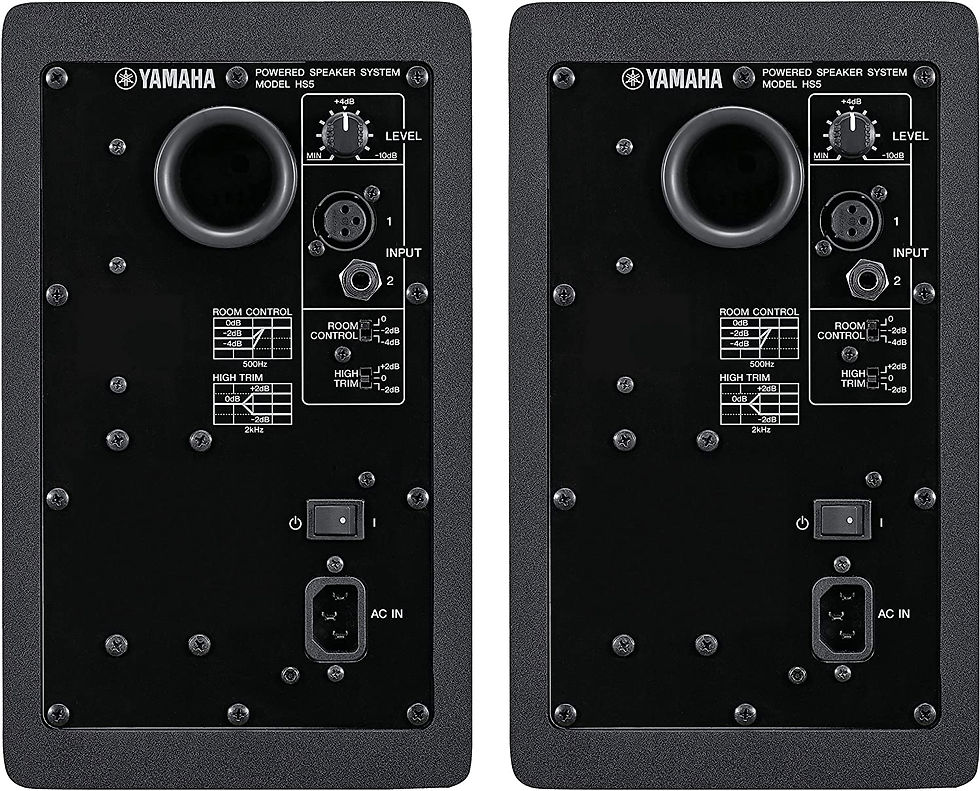

Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)

Flying and mounting hardware: -

Options: -
